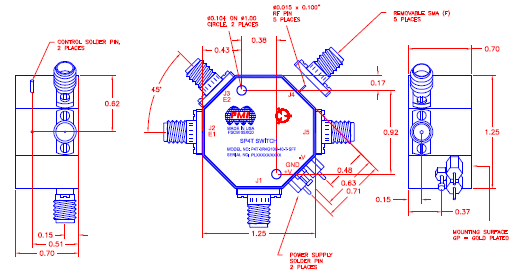

P4T-0R4G10G-40-T-SFF
Preliminary
PMI Model P4T-0R4G10G-40-T-SFF is a single pole four throw absorptive switch operating from 0.4 GHz TO 10.0 GHz. It has a maximum insertion loss of 3.0 dB and isolation of 40 dB minimum.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency: | 0.4 to 10.0 GHz |
|---|
| Frequency Min: | 0.4 GHz |
|---|
| Frequency Max: | 10 GHz |
|---|
| Insertion Loss (Typ): | 2.0 dB |
|---|
| Isolation (Typ): | 40 dB |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Switching Speed (Typ): | 50 nsec |
|---|
| Configuration: | SP4T |
|---|
| Isolation: | 0.4 to 4.0 GHz: 40 dB, 4.0 to 10.0 GHz: 28 dB |
|---|
| Insertion Loss: | 2.0 dB Typ, 3.0 dB Max |
|---|
| VSWR In/Out: | IN / OUT: 2.0:1 Max Terminated OUT: 2.0:1 |
|---|
| Input Power: | +20 dBm CW Max |
|---|
| Operating Peak Input Power: | 10 W Peak 1 µs Pulse, 1% Duty Cycle |
|---|
| Survival Power: | 1 W CW Max (+30 dBm) |
|---|
| Switching Speed: | 50 ns Max |
|---|
| Power Supply: | +5 V @ 65 mA nominal, -5 V @ 50 mA nominal |
|---|
| Connectors: | SMA (F) |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -55 ºC to +125 ºC |
|---|
