P4T-0R518G-60-T-515-SFF-MSN Preliminary
Absorptive, SP4T Pin Diode Switch

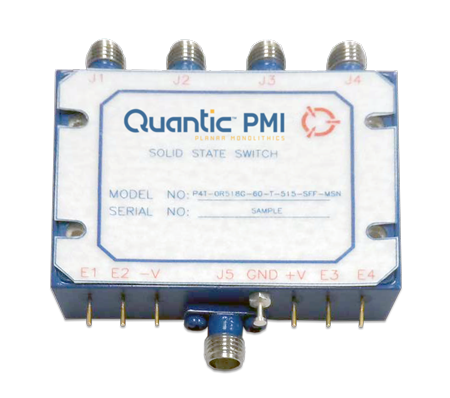

Quantic PMI Model P4T-0R518G-60-T-515-SFF-MSN is an absorptive, single pole, four throw pin diode switch that operates over the 0.5 to 18 GHz frequency range and has over 60 dB of isolation. Housing measures 2.0" x 1.5" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.75 dB |
| Insertion Loss - Typ (dB): | 3.75 dB |
| Isolation (dB): | 60 dB |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 10 ns Typ, 15 ns Max (Rise/Fall Time), 75 ns Typ, 100 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 10 ns |
| Rise/Fall Time: | 10 ns Typ, 15 ns Max |
| Delay On/Off: | 75 ns Typ, 100 ns Max |
| VSWR In/Out: | In/Out: 2.0:1, Out/Off: 2.0:1 |
| Input Power: | 20 dBm CW (Standard), 10 dBm (High Speed) |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Power Supply: | +5 VDC @ 200 mA Max - Measured 0.12 mA -15 VDC @ 100 mA Max - Measured 0.04 mA |
| Control Signal: | TTL Logic "0"=On, "1"=Off |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 2.0" x 1.5" x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
