P4T-0R5G18G-1W-70-R-SFF Preliminary
SP4T Reflective Switch

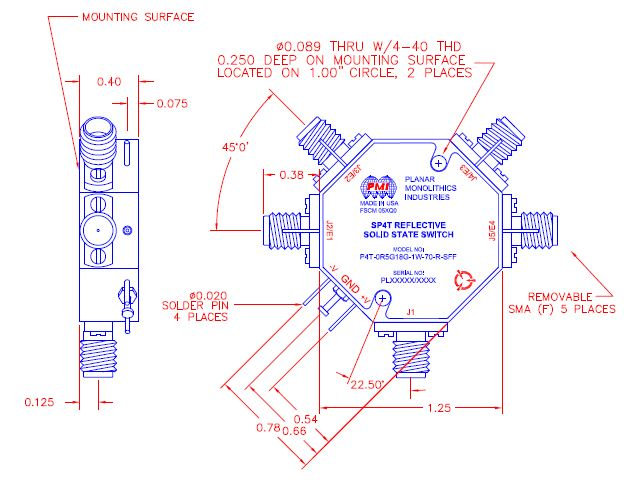

Quantic PMI Model P4T-0R5G18G-1W-70-R-SFF is a reflective, high speed, single pole four throw switch capable of switching within 100 ns maximum with a frequency range of 0.5 to 18 GHz and has >70 dB isolation. Housing size is 1.25" x 1.25" x 0.4" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max |
| Isolation (dB): | 70 dB Min |
| Switching Speed: | 100 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 30 dBm Max |
| Impedance: | 50 Ohm |
| Power Supply: | +5 VDC, 200 mA Typ, -15 VDC, 75 mA Typ |
| Control: | TTL |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to 85 °C |
| Non-Operating Temperature: | -65 °C to 125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
