P4T-0R5G18G-50-T-SFF Preliminary
SP4T Absorptive Switch

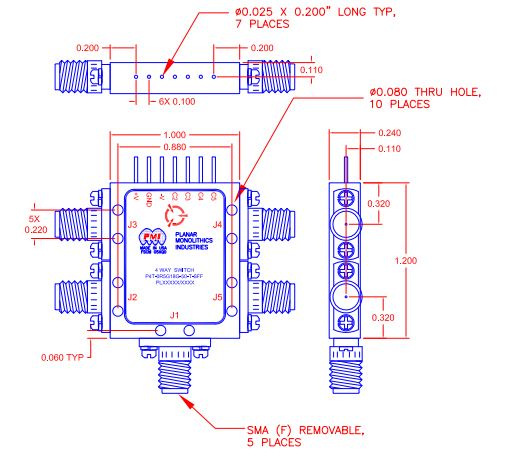

Quantic PMI Model P4T-0R5G18G-50-T-SFF is a single pole, four throw non-reflective switch designed to operate over the 0.5 to 18 GHz frequency range. that is designed to maintain low insertion loss, high isolation and fast switching speed. Housing measures 1.0" x 1.2" x 0.24" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max |
| Insertion Loss - Typ (dB): | 3 dB |
| Isolation (dB): | 60 dB Min (0.5 to 10 GHz), 50 dB Min (10 to 18 GHz) |
| Isolation - Typ (dB): | 50 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.0:1 Max |
| Survival Power: | 23 dBm |
| Power Supply: | +5 VDC @ 135 mA Max, -12 to -15 VDC @ 65 mA Max |
| Control Signal: | TTL Logic "0" = Switch On, "1" = Switch Off |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.0" x 1.2" x 0.24" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 to +70 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
