P4T-0R5G18G-50-T-SFF-OPT50M4G Active
SP4T Non-Reflective Switch

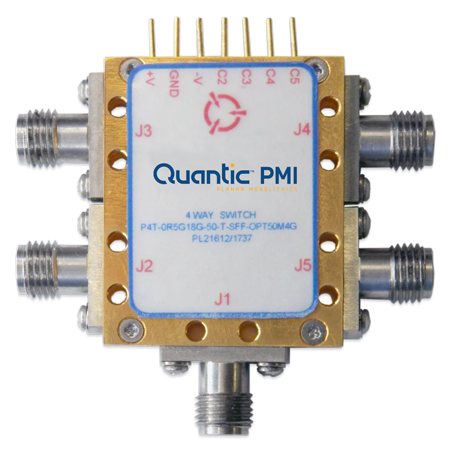

Quantic PMI Model P4T-0R5G18G-50-T-SFF-OPT50M4G is a single pole, four throw reflective switch designed to operate over the 0.05 to 4 GHz frequency range that is designed to maintain low insertion loss, high isolation, and fast switching speed. Housing measures 1.0" x 1.2" x 0.24" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.05 to 4 |
| Frequency Min (GHz): | 0.05 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 1.25 dB Max |
| Insertion Loss - Typ (dB): | 1.25 dB |
| Isolation (dB): | 50 dB Min |
| Isolation - Typ (dB): | 50 dB |
| Switching Speed: | 25 ns Max |
| Switching Speed - Typ: | 25 ns |
| Rise/Fall Time: | 10 ns |
| Survival Power: | 1W CW |
| Power Supply: | +5 VDC ± 5% @ 200 mA Nom, -5 VDC ± 5% @ 100 mA Nom |
| Control Signal: | TTL Logic, "0" = Switch On, "1" = Switch Off |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.0" x 1.2" x 0.24" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +70 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
