P4T-0R5G18G-50-T-SFF-OPT50M4G-TERM-HERM-ROHS Active
SP4T Absoprtive Switch - 50 MHz to 4 GHz

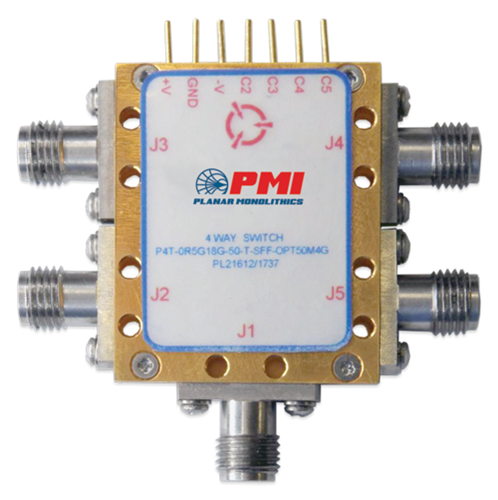

PMI Model P4T-0R5G18G-50-T-SFF-OPT50M4G-TERM-HERM-ROHS is a hermetically sealed, ROHS/REACH compliant, absorptive SP4T switch that operates over the 0.05 to 4 GHz frequency range and is designed to maintain low insertion loss, high isolation, and fast switching speed. This product's housing measures 1.0" x 1.2" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency Min (GHz): | 0.05 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 1.75 dB Max |
| Isolation (dB): | 50 dB Min |
| Switching Speed: | 25 ns |
| Rise/Fall Time: | 10 ns |
| VSWR In/Out: | 2.0:1 Max (ON) |
| Survival Power: | 1 W CW Max |
| Power Supply: | +5 VDC ± 5% @ 135 mA Max -5 VDC ± 5% @ 65 mA Max |
| Control Signal: | TTL "0" = Switch On TTL "1" = Switch Off |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - Removable |
| Size: | 1.0" x 1.2" x 0.5" |
| Sealing: | Hermetic |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 ºC to +70 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
