P4T-0R5G18G-55-R-SFF-PN * Active
SP4T Reflective Switch

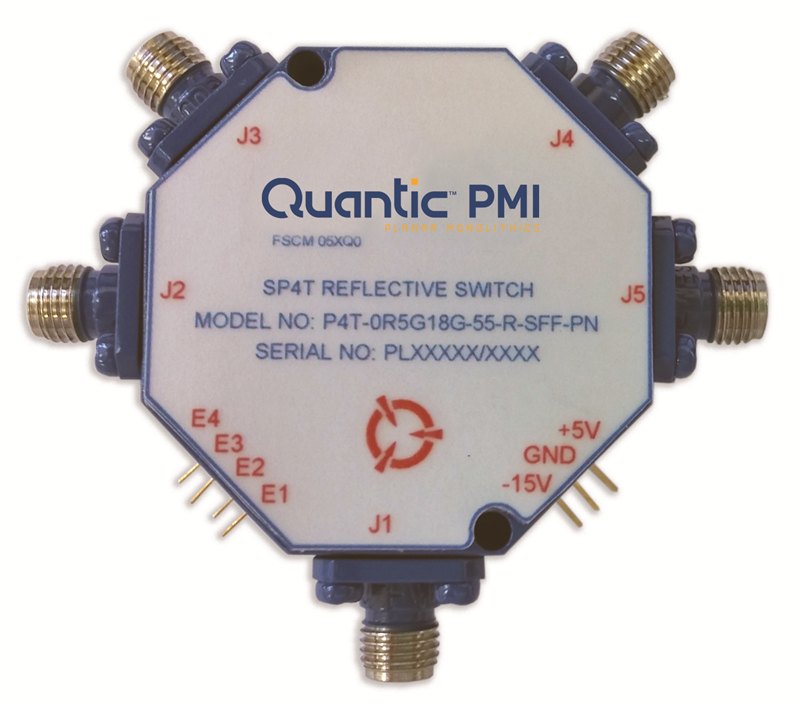

Quantic PMI Model P4T-0R5G18G-55-R-SFF-PN is a single pole, four throw reflective switch designed to operate over the 0.5 to 18 GHz frequency range and to maintain low insertion loss, high isolation, and fast switching speed. Housing measures 1.5" x 1.5" x 0.6" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.2 dB Max |
| Insertion Loss - Typ (dB): | 3.2 dB |
| Isolation (dB): | 55 dB Min |
| Isolation - Typ (dB): | 55 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.0:1 Max - Measured 1.84:1 |
| Input Power: | 20 dBm CW Max |
| Power Supply: | +5 VDC @ 160 mA Nom, -15 VDC @ 50 mA Nom |
| Control Signal: | TTL Logic "0" = Low Loss, "1" = Isolation |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.5" x 1.5" x 0.6" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
