P4T-0R5G18G-60-R-SFF Preliminary

SP4T Reflective Switch

P4T-0R5G18G-60-R-SFF
Product Feature

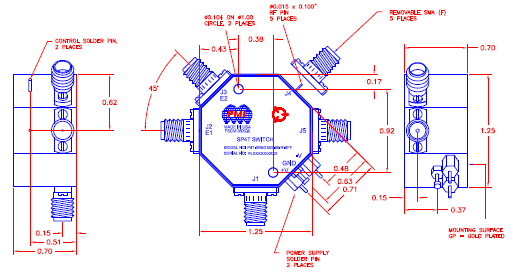

Quantic PMI Model P4T-0R5G18G-60-R-SFF is a high speed, single pole, four throw, reflective switch capable of switching within 100 ns that has a frequency range of 0.5 to 18 GHz and has over 60 dB of isolation.  Housing measures 1.25" x 1.25" x 0.7" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Configuration: SP4T
Reflective / Absorptive: Reflective
Frequency (GHz): 0.5 to 18
Frequency Min (GHz): 0.5
Frequency Max (GHz): 18
Insertion Loss (dB): 3 dB Max
Insertion Loss - Typ (dB): 3 dB
Isolation (dB): 60 dB Min
Isolation - Typ (dB): 60 dB
Switching Speed: 100 ns Max
Switching Speed - Typ: 100 ns
VSWR In/Out: 2.0:1 Max
Input Power: 20 dBm CW Max
Power Supply: +5 VDC @ 200 mA,
-5 VDC @ 100 mA
Control Signal: Two Line TTL
Power & Control Connector: Solder PIns
Connectors: SMA Female
Size: 1.25" x 1.25" x 0.7"
Finish: Gold
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202G, Method 103B Cond. B
Shock: MIL-STD-202G, Method 213B Cond. B
Vibration: MIL-STD-202G, Method 204D Cond. B
Altitude: MIL-STD-202G, Method 105C Cond. B
Temperature Cycle: MIL-STD-202G, Method 107G Cond A
