P4T-0R5G18G-60-T-SFF Preliminary
SP4T Absorptive Switch
Quantic PMI Model P4T-0R5G18G-60-T-SFF is a single pole, four throw, absorptive switch operating over the 0.5 to 18 GHz frequency range with a minimum of 60 dB isolation, while maintaining a maximum insertion loss of 3.5 dB and a maximum VSWR of 2.0:1. Housing measures 0.936" sq x 0.366" and s outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 1.9 to 3.5 dB Max |
| Insertion Loss - Typ (dB): | 3.5 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.0:1 Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |

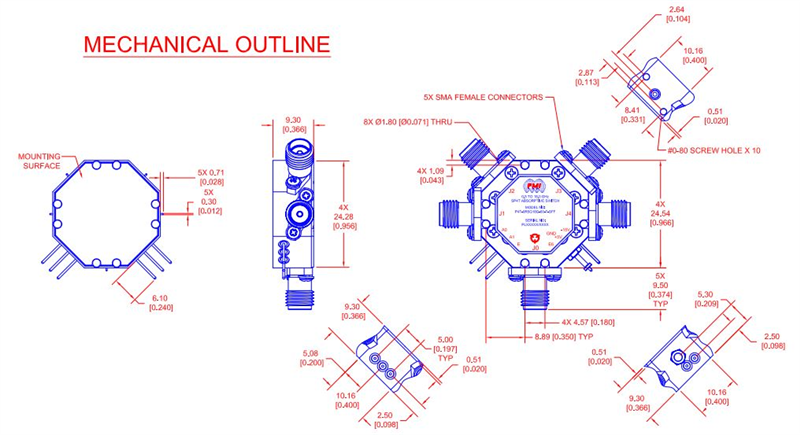

| Size: | 0.936" sq x 0.366" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +100 ºC |
| Non-Operating Temperature: | -55 ºC to +100 ºC |
| Humidity: | 0-100% Relative Humidity |
| Shock: | 15G, 11 ms |
| Vibration: | Double Amplitude: 10 mm @ 2 to 5 Hz, Double Amplitude: 5 mm @ 5 to 10 Hz |
| Altitude: | 50, 000 Feet |
