P4T-0R5G18G-70-R-SFF Preliminary

Product Feature

PMI Model No. P4T-0R5G18G-70-R-SFF is a Reflective, High Speed, Single Pole Four Throw Switch capable of switching within 100ns maximum. The frequency range is 0.5 to 18.0 GHz. This switch has 70dB isolation.

Product Specifications

General Parameters:
Status: Preliminary
Frequency: 0.5 to 18.0 GHz
Frequency Min: 0.5 GHz
Frequency Max: 18 GHz
Insertion Loss (Typ): 3.0 dB
Isolation (Typ): 70 dB
Reflective / Absorptive: Reflective
Switching Speed (Typ): 100 nsec
Configuration: SP4T
Isolation: 70 dB min.
Insertion Loss: 3.0 dB max.
VSWR In/Out: 2.0:1 max.
Input Power: +20 dBm max
Survival Power: +30 dBm max.
Switching Speed: 100 ns max.
Impedance: 50 Ohms
Control Signal: Solder Pin TTL Logic
Connectors: SMA (F)

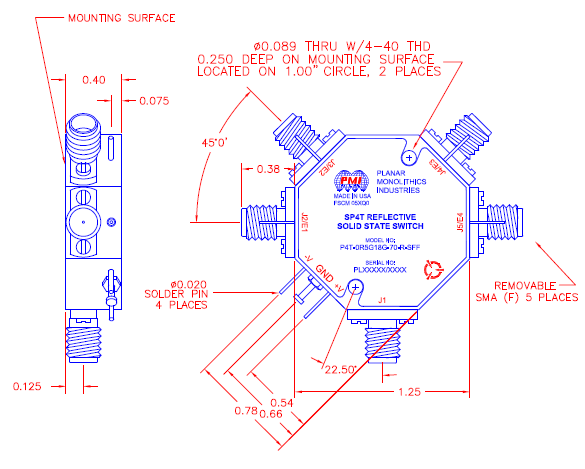

Size: 1.25" x 1.25" x 0.4"
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -55ºC to +85ºC
Non-Operating Temperature: -65ºC to +125ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
