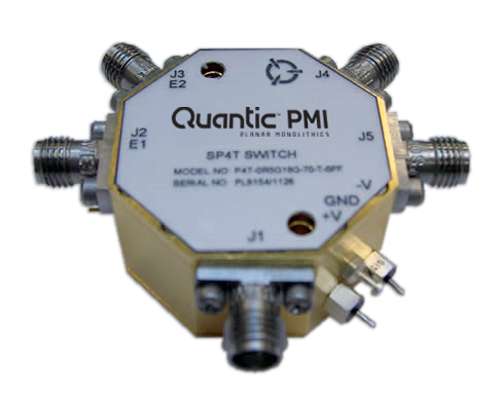

P4T-0R5G18G-70-T-SFF Active
SP4T Absorptive Switch
Quantic PMI Model NoP4T-0R5G18G-70-T-SFF is a high speed, single pole, four throw, absorptive switch capable of switching within 100 ns with a frequency range of 0.5 to 18 GHz and has over 70 dB of isolation. Housing measures 1.25" x 1.25" x 0.7" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Typ, 3.75 dB Max |
| Insertion Loss - Typ (dB): | 3.75 dB |
| Isolation (dB): | 95 dB Typ, 60 dB Min (0.5 to 2 GHz), 85 dB Typ, 70 dB Min (2 to 18 GHz) |
| Isolation - Typ (dB): | 70 dB |
| Switching Speed: | 10 ns Typ, 15 ns Max (Rise/Fall), 75 ns Typ, 100 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 75 ns |
| Rise/Fall Time: | 10 ns Typ., 15 ns Max |
| Delay On/Off: | 30 ns Typ, 100 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW |
| Power Supply: | +5 VDC @ 20mA Typ, -5 VDC @ 40mA Typ |
| Control Signal: | 2-Bit Decoded TTL |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Features: | Low Insertion Loss, High isolation, Fast Switching Speed, Small Size |
| Size: | 1.25" x 1.25" x 0.7" |
| Finish: | Gold |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
