P4T-0R5G8G-60-55-T-SFF Preliminary
SP4T Absorptive Switch
Quantic PMI Model P4T-0R5G8G-60-55-T-SFF is an absorptive, high speed, single pole four throw switch capable of switching within 100 ns maximum with a frequency range of 0. to 8 GHz and has 60 dB isolation minimum. incorporates a TTL compatible driver for easy system integration. Housing size is 1.25" x 1.25" x 0.4" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 8 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 8 |
| Insertion Loss (dB): | 1.9 dB Max, 2.5 dB Max |
| Isolation (dB): | 60 dB Min, 75 dB Typ |
| Switching Speed: | 100 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 30 dBm Max |
| Impedance: | 50 Ohm |
| Power Supply: | +5 VDC, 200 mA Typ, -5 VDC, 100 mA Typ |
| Control: | TTL Logic "0" = Low Loss TTL Logic "1" = Isolation E1 Controls J1 to J2 E2 Controls J1 to J3 E3 Controls J1 to J4 E4 Controls J1 to J5 |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |

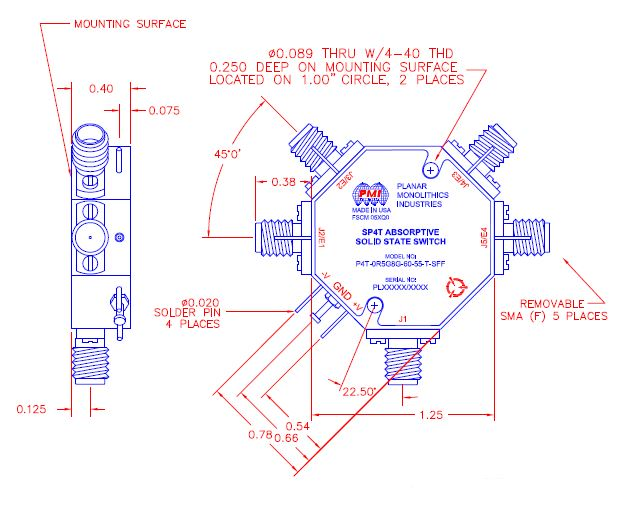

| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
