P4T-100M2G-50-T-SFF-IN-EP Active
Absorptive, SP4T Solid State Switch

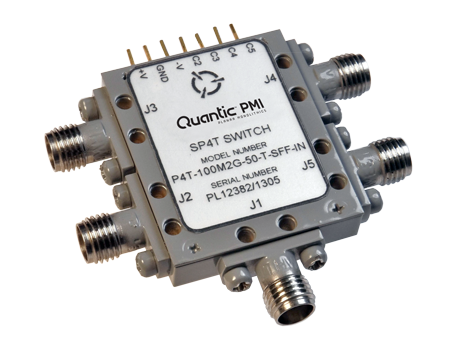

Quantic PMI Model P4T-100M2G-50-T-SFF-IN-EP is an absorptive, single pole, four throw solid-state switch that operates over the 0.1 to 2 GHz frequency range with a maximum insertion loss of 3 dB, port to port isolation of over 50 dB, and a maximum switching speed of 25 ns. Housing measures 1.0" x 1.2" x 0.24" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 2 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 2 |
| Insertion Loss (dB): | 3 dB Max |
| Isolation (dB): | 50 dB Min |
| Switching Speed: | 25 ns Typ |
| Switching Speed - Typ: | 25 ns |
| Rise/Fall Time: | 10 ns Typ |
| VSWR In/Out: | 2:1 Max |
| Survival Power: | 26 dBm CW |
| Power Supply: | +5 VDC @ 135 mA Max -5 VDC @ 65 mA Max |
| Control Signal: | Four Line TTL, TTL "0" = Insertion Loss, TTL "1" = Isolation |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - Field Removable |
| Size: | 1.0" x 1.2" x 0.24" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 ºC to +70 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
