P4T-100M40G-90-T-512-292FF Active

High Speed SP4T Absorptive Switch

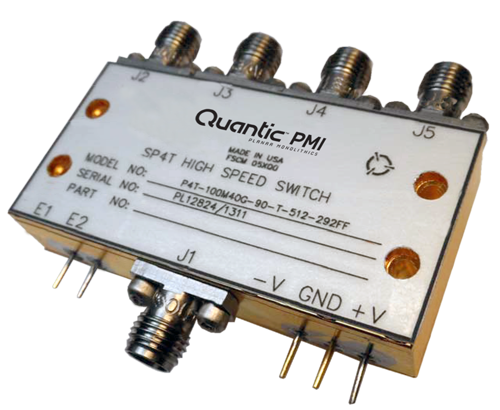

P4T-100M40G-90-T-512-292FF
Product Feature

Quantic PMI Model P4T-100M40G-90-T-512-292FF is a 0.1 to 40 GHz, Ultra-Compact, High Speed, Single Pole, Four Throw, Absorptive Switch that offers over 100 dB of port-to-port isolation from 0.1 to 18 GHz, over 90 dB from 18 to 26.5 GHz and over 75 dB from 26.5 to 40 GHz. Typical insertion loss of 8.8 dB from 0.1 to 18 GHz, 5.2 dB from 18 to 26.5 GHz and 5.6 dB from 26.5 to 40 GHz with a switching speed is <100 ns and is controlled by 2-Bit decoded TTL. Maximum operating power is 20 dBm CW and the typical VSWR is 2.0:1. The compact housing measures only 2.0" x 1.0" x 0.4" and is supplied with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP4T
Reflective / Absorptive: Absorptive
Frequency (GHz): 0.1 to 40
Frequency Min (GHz): 0.1
Frequency Max (GHz): 40
Insertion Loss (dB): 6 dB Typ (0.1 to 18 GHz),
8 dB Typ (18 to 26.5 GHz),
1 dB Typ (26.5 to 40 GHz)
Insertion Loss - Typ (dB): 6 dB
Isolation (dB): >100 dB Typ (0.1 to 18 GHz),
>95 dB Typ (18 to 26.5 GHz),
>77 dB Typ (26.5 to 40 GHz)
Isolation - Typ (dB): 75 dB
Switching Speed: 100 ns Max
Switching Speed - Typ: 75 ns
VSWR In/Out: 2.0:1 Typ, 2.75:1 Max
Input Power: 20 dBm CW Max
Power Supply: +5 VDC @ 200 mA Max, 120 mA Typ,
-12 VDC @ 100 mA Max, 65mA Typ
Control Signal: 2-Bit Decoded TTL
Power & Control Connector: Solder Pins
Connectors: 2.92mm Female
Features: Ultra-Broadband Performance from 0.1 to 40 GHz, Low Insertion Loss, High isolation, Fast Switching Speed, Small Size
Size: 2.0" x 1.0" x 0.4"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
