P4T-100M40G-90-T-512-292FF-IND Active
SP4T Absorptive Switch

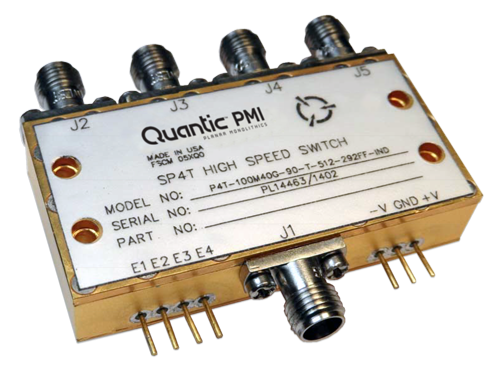

Quantic PMI Model P4T-100M40G-90-T-512-292FF-IND is an absorptive, single pole, four throw pin diode switch that operates over the 0.1 to 40 GHz frequency range that incorporates a TTL compatible driver for easy system integration. Housing size is 2.0" x 1.0" x 0.4" and is outfitted with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 40 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 5.25 dB Typ, 6 dB Max (0.1 to 18 GHz), 6.25 dB Typ, 8 dB Max (18 to 26.5 GHz), 7.25 dB Typ, 10 dB Max (26.5 to 40 GHz) |
| Insertion Loss - Typ (dB): | 5.25 dB |
| Isolation (dB): | 100 dB Typ, 95 dB Min (0.1 to 18 GHz), 95 dB Typ, 80 dB Min (18 to 26.5GHz), 77 dB Typ, 70 dB Min (26.5 to 40 GHz) |
| Isolation - Typ (dB): | 100 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.0:1 Typ, 2.75:1 Max |
| Input Power: | 20 dBm CW Max |
| Power Supply: | +5 VDC @ 200 mA Max, -12 VDC @ 100 mA Max |
| Control Signal: | 4 Line TTL, "0" = Insertion Loss, "1" = Isolation |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 2.0" x 1.0" x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C Method 508.2 |
