P4T-100M40G-90-T-512-292FF-OPT20 Preliminary
SP4T Absorptive Switch

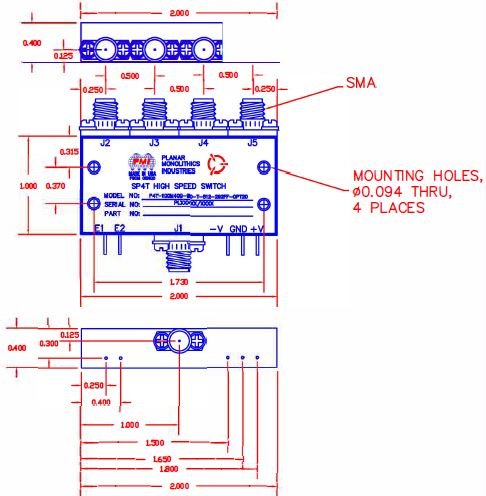

Quantic PMI Model P4T-100M40G-90-T-512-292FF-OPT20 is an absorptive, single pole, four throw pin diode switch can operate over the 0.1 to 20 GHz frequency range and incorporates a TTL compatible driver for easy system integration. Housing measures 1.0" x 2.0" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 20 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 5 dBm Max |
| Isolation (dB): | 100 dB |
| Switching Speed: | 100 ns Max |
| Input Power: | 20 dBm CW Max |
| Power Supply: | +5 VDC @ 200 mA Max, -12V @ 100 mA Max |
| Control: | SOLDER PINS |
| Control Signal: | 2 Bit Decoded TTL |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA |
| Size: | 1.0" x 2.0" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 1038 COND. B |
| Shock: | MIL-STD-202F, METHOD 2138 COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
| Salt Fog: | MIL-STD-202F, METHOD 107D COND. A |
| Fungus: | MIL-STD-810C, METHOD 508.2 |
