| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency (GHz): | 0.1 to 40 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 40 |
|---|

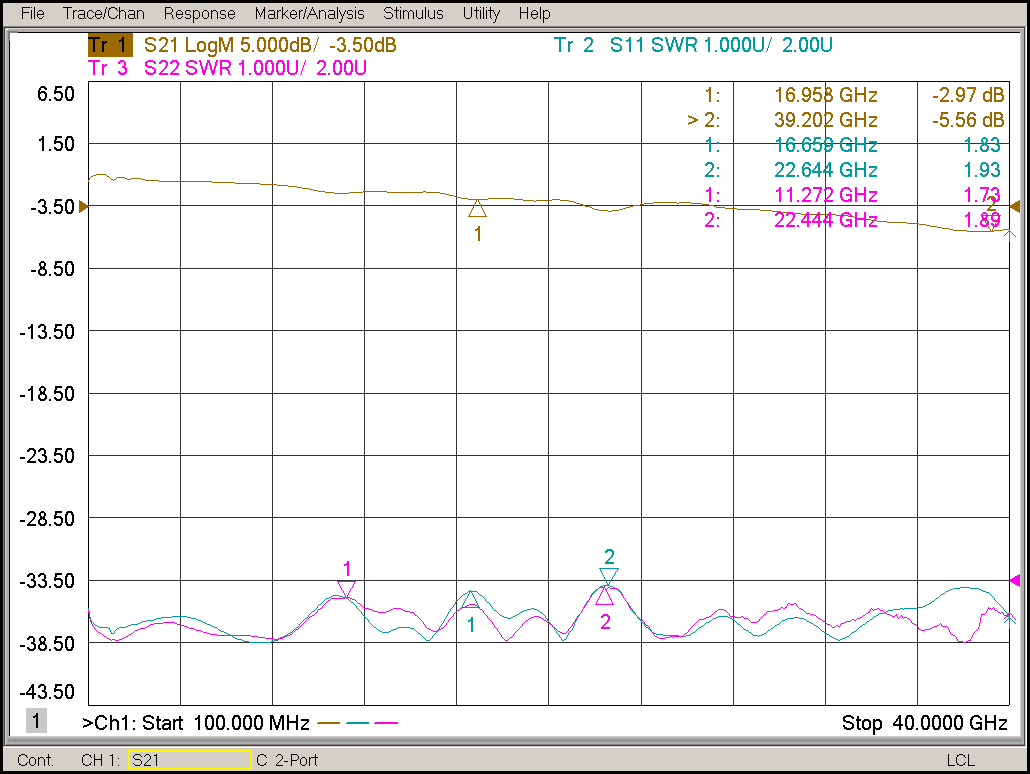

| Insertion Loss (dB): | 3.5 dB Max (0.1 to 18 GHz),
6 dB Max (18 to 40 GHz) |
|---|
| Isolation (dB): | 70 dB (0.1 to 1 GHz) Typ,
100 dB (1.0 to 18 GHz) Typ, 100 dB (18 to 40 GHz) Typ |
|---|
| Switching Speed: | 50 ns Max |
|---|
| VSWR In/Out: | 2.0:1 (0.1 to 18 GHz) Max,
2.25:1 (18 to 40 GHz) Max |
|---|
| Input Power: | 20 dBm CW Max |
|---|
| Power Supply: | +5 VDC @ 200 mA Max,
-5 VDC @ 200 mA Max |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | 2.92mm Female |
|---|

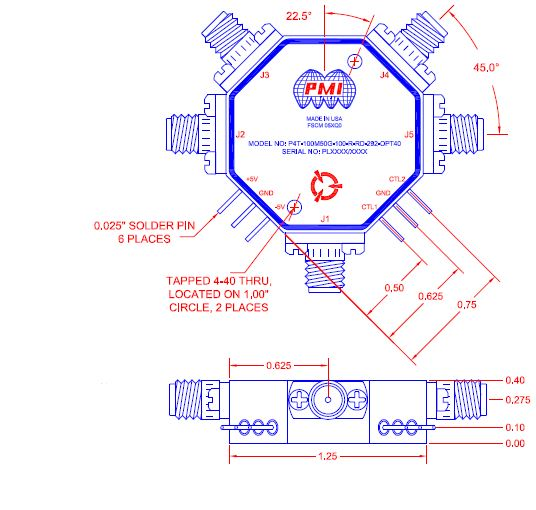

| Size: | 1.25" x 1.25" x 0.40" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
