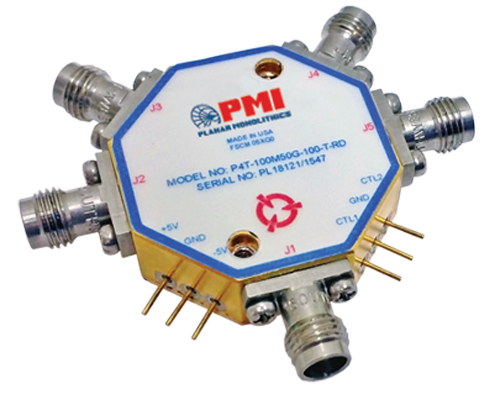

P4T-100M50G-100-T-RD Active
SP4T Absorptive, Pin Diode Switch
Buy Now
Additional Documents
- Product Feature
- S-Parameters
- Test Report - 10/29/20
- Test Report - PL18121
- Test Report - PL18122
- S Parameters - PL18122
- PL18121 - Unit Data
- PL18122 - Unit Data
- PL34182 - Unit Data
- PL37653 - Unit Data
- PL37654 - Unit Data
- PL37655 - Unit Data
- PL38004 - Unit Data
- PL38005 - Unit Data
- PL39360 - Unit Data
- PL39361 - Unit Data
- PL49632 - Unit Data
PMI Model P4T-100M50G-100-T-RD is an absorptive, single pole four throw pin diode switch that operates over the 0.1 to 50 GHz frequency range that features low insertion loss and high isolation in a slimline package. This module also incorporates a TTL compatible driver for ease of system integration. Package size is 1.25" x 1.25" x 0.4" with 2.4mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 50 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 50 |
| Insertion Loss (dB): | 5 dB (0.1 to 18 GHz) Max, 8 dB (18 to 40 GHz) Max, 14 dB (40 to 50 GHz) Max |
| Insertion Loss - Typ (dB): | 5 dB |
| Isolation (dB): | 80 dB (0.1 to 1 GHz) Min, 90 dB (1 to 18 GHz) Min, 75 dB (18 to 40 GHz) Min, 70 dB (40 to 50 GHz) Min |
| Isolation - Typ (dB): | 70 dB |
| Switching Speed: | 50 ns Max |
| Switching Speed - Typ: | 50 ns |
| VSWR In/Out: | 2.2:1 (0.1 to 18 GHz) Max, 2.7:1 (18 to 40 GHz) Max, 3.2:1 (40 to 50 GHz) Max |
| Input Power: | 20 dBm CW Max |
| Power Supply: | +5 VDC @ 200 mA Max - Measured 154 mA -5 VDC @ 200 mA Max - Measured 135 mA |
| Control Signal: | TTL Logic |
| Connectors: | 2.4mm Female |
| Size: | 1.25" x 1.25" x 0.40" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond B |
| Shock: | MIL-STD-202, Method 213B Cond B |
| Vibration: | MIL-STD-202, Method 204D Cond B |
| Altitude: | MIL-STD-202, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
