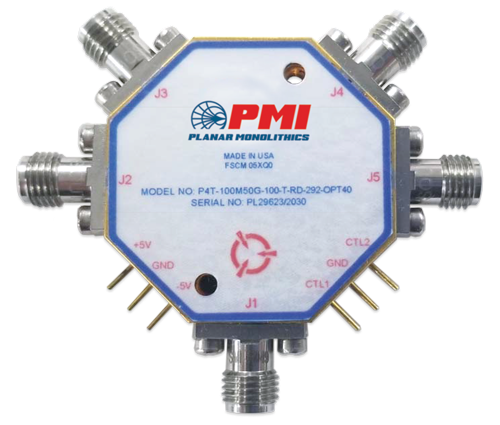

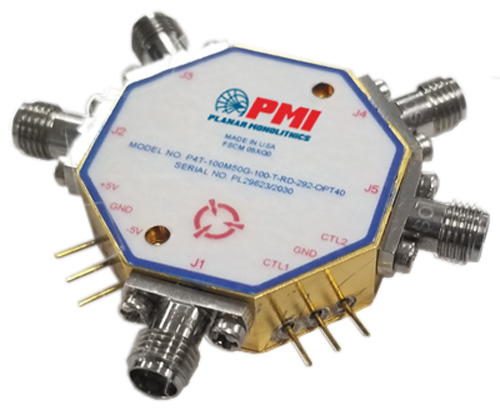

P4T-100M50G-100-T-RD-292-OPT40 Active

Absorptive, SP4T Pin Diode Switch

  • https://d2f6h2rm95zg9t.cloudfront.net/32376511/P4T_100M50G_100_T_RD_292_OPT40_85967283_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/Capture_77611002_400.PNG
Product Feature

Quantic PMI Model P4T-100M50G-100-T-RD-292-OPT40 is an absorptive, single pole four throw pin diode switch that operates over the 0.1 to 40.0 GHz frequency range. It features low insertion loss and high isolation in a slimline package. This model also incorporates a TTL compatible driver for ease of system integration.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.1 to 40.0 GHz
Frequency Min: 0.1 GHz
Frequency Max: 40 GHz
Reflective / Absorptive: Absorptive
Configuration: SP4T
Isolation: 70 dB (0.1 to 1.0 GHz) Typ
100 dB (1.0 to 18.0 GHz) Typ
100 dB (18.0 to 40.0 GHz) Typ
Insertion Loss: 4.0 dB (0.1 to 18.0 GHz) Max
7.0 dB (18.0 to 40.0 GHz) Max
VSWR In/Out: 2.0:1 (0.1 to 18.0 GHz) Max
2.25:1 (18.0 to 40.0 GHz) Max
Input Power: 20 dBm CW Max
Switching Speed: 50 ns Max
Power Supply: +5 V @ 200 mA Max
-5 V @ 200 mA Max
Connectors: 2.92mm (F)
Size: 1.25" x 1.25" x 0.40"
Finish: Gold Plated
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
