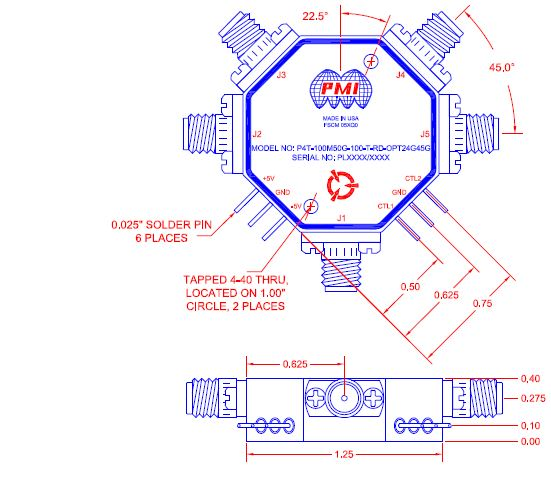

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 24 to 45 |
|---|
| Frequency Min (GHz): | 24 |
|---|
| Frequency Max (GHz): | 45 |
|---|
| Insertion Loss (dB): | 8 dB (24 to 40 GHz) Typ,
14 dB (40 to 45 GHz) Typ |
|---|
| Isolation (dB): | 100 dB (24 to 40 GHz) Typ,
80 dB (40 to 45 GHz) Typ |
|---|
| Switching Speed: | 50 ns Max |
|---|
| VSWR In/Out: | 2.5:1 (24 to 40 GHz) Typ,
3.0:1 (40 to 45 GHz) Typ |
|---|
| Input Power: | 20 dBm CW Max |
|---|
| Power Supply: | +5 VDC @ 200 mA Max,
-5 VDC @ 200 mA Max |
|---|
| Control Signal: | TTL Logic |
|---|
| Connectors: | 2.4mm Female |
|---|
| Size: | 1.25" x 1.25" x 0.40" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
|---|
