P4T-100M52G-100-R-RD Active
Reflective SP4T Pin Diode Switch
Additional Documents

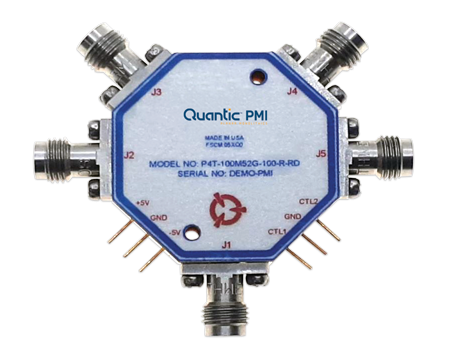

Quantic PMI Model P4T-100M52G-100-R-RD is a reflective, single pole four throw pin diode switch that operates over the 0.1 to 52 GHz frequency range that features low insertion loss and high isolation and incorporates a TTL compatible driver for ease of system integration. Housing measures 1.25" x 1.25" x 0.4" with 2.4mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.1 to 52 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 52 |
| Insertion Loss (dB): | 5 dB Max (0.1 to 18 GHz), 7 dB Max (18 to 40 GHz), 10 dB Max (40 to 50 GHz), 14 dB Typ (50 to 52 GHz) |
| Isolation (dB): | 80 dB (0.1 to 1 GHz) Min, 70 dB (18 to 40 GHz) Min, 70 dB (40 to 50 GHz) Min, 70 dB (50 to 52 GHz) Typ |
| Switching Speed: | 50 ns Max |
| VSWR In/Out: | 2.0:1 (0.1 to 10 GHz) Typ, 2.2:1 (10 to 18 GHz) Typ, 2.5:1 (18 to 30 GHz) Typ, 3.0:1 (30 to 50 GHz) Typ, 3.5:1 (50 to 52 GHz) Typ |
| Input Power: | 20 dBm CW Max (0.1 to 40 GHz) |
| Power Supply: | +5 VDC @ 200 mA Max, -5 VDC @ 200 mA Max |
| Control Signal: | See TTL Logic Table |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.4mm Female |
| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
