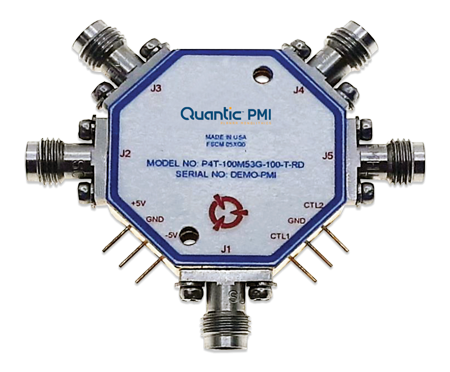

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.1 to 53 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 53 |
|---|
| Insertion Loss (dB): | 5 dB Max (0.1 to 18 GHz),
7 dB Max (18 to 40 GHz),
10 dB Max (40 to 50 GHz),
14 dB Typ (50 to 52 GHz) |
|---|
| Isolation (dB): | 100 dB (0.1 to 1 GHz) Min,
90 dB (1 to 18 GHz) Min,
70 dB (18 to 40 GHz) Min,
70 dB (40 to 50 GHz) Min,
70 dB (50 to 53 GHz) Min |
|---|
| Switching Speed: | 50 ns Max |
|---|
| VSWR In/Out: | 2.0:1 (0.1 to 16 GHz) Typ,
2.5:1 (16 to 40 GHz) Typ,
2.5:1 (40 to 50 GHz) Typ,
2.5:1 (50 to 53 GHz) Typ |
|---|
| Input Power: | 20 dBm CW Max |
|---|
| Power Supply: | +5 VDC @ 200 mA Max,
-5 VDC @ 200 mA Max |
|---|
| Control Logic: | See TTL Logic Table |
|---|
| Connectors: | 2.4mm Female |
|---|
| Size: | 1.25" x 1.25" x 0.4" |
|---|
| Weight: | 40 g Max, ~1.41 oz Max |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
|---|
