P4T-100M6G-80-T-SFF-JW Preliminary
Terminated SP4T Switch

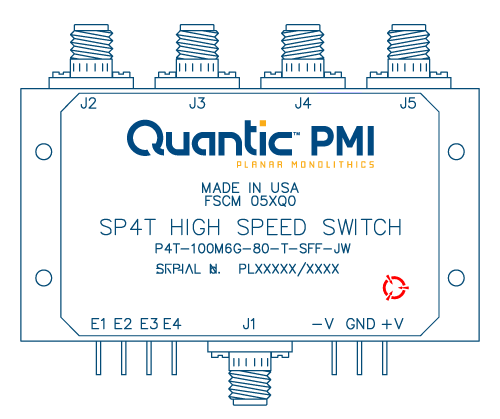

Quantic PMI Model P4T-100M6G-80-T-SFF-JW is a terminated, single pole, four throw switch that operates from 0.1 to 6 GHz which handles 23 dBm CW input power and has port to port isolation of 80 dBm with a low insertion loss of 3.5 dB, while still offering a fast-switching speed of 150 ns. Housing size is 2.72" x 1.5" x 0.4" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 6 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 3.5 dB Typ, 3.75 dB Max |
| Insertion Loss - Typ (dB): | 3.5 dB |
| Isolation (dB): | 80 dB Typ, 70 dB Max |
| Isolation - Typ (dB): | 80 dB |
| Switching Speed: | 150 ns Typ, 200 ns Max |
| Switching Speed - Typ: | 150 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 23 dBm CW Max |
| Survival Power: | 33 dBm CW Max |
| Power Supply: | +5 VDC & -12 VDC |
| Control Signal: | TTL Logic, "0" = Insertion Loss, "1" = Isolation |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 2.72" x 1.50" x 0.40" |
| Weight: | 1.75 oz |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 ºC to +85 ºC |
| Non-Operating Temperature: | -54 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. C |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
