P4T-10G-20-R-SFF-15W Preliminary
SP4T Reflective Switch

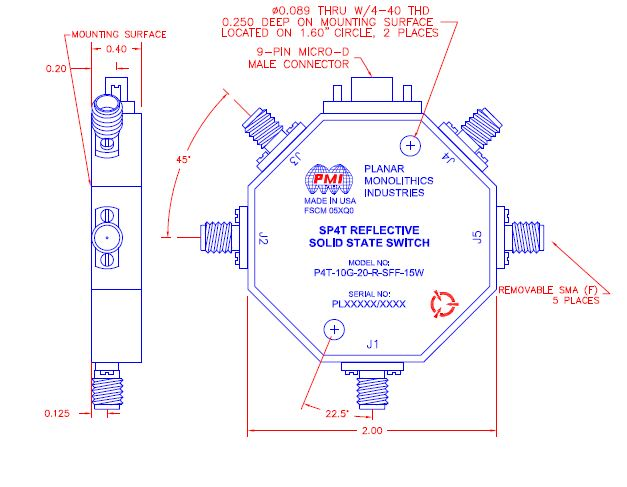

Quantic PMI Model P4T-10G-20-R-SFF-15W is a 10 GHz reflective, high speed, single pole four throw switch capable of switching within 100 ns and has a 20 dB isolation. Housing measures 2.72" x 1.5" x 0.4" with 9-pin micro-D connector for power & control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 10 |
| Frequency Min (GHz): | 10 |
| Frequency Max (GHz): | 10 |
| Insertion Loss (dB): | 2.5 dB Typ |
| Isolation (dB): | 20 dB Typ |
| Switching Speed: | 100 ns Typ |
| VSWR In/Out: | 2.0:1 Typ |
| Input Power: | 15 W Typ |
| Power Supply: | +5 VDC, -15 VDC |
| Control Signal: | TTL Logic "0" = Low Loss TTL Logic "1" = Isolation E1 Controls J1 to J2 E2 Controls J1 to J3 E3 Controls J1 to J4 E4 Controls J1 to J5 |
| Power & Control Connector: | 9-Pin Micro-D Male |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
