P4T-10G10D5G-40-R-SFF Preliminary
Reflective, SP4T Pin Diode Switch

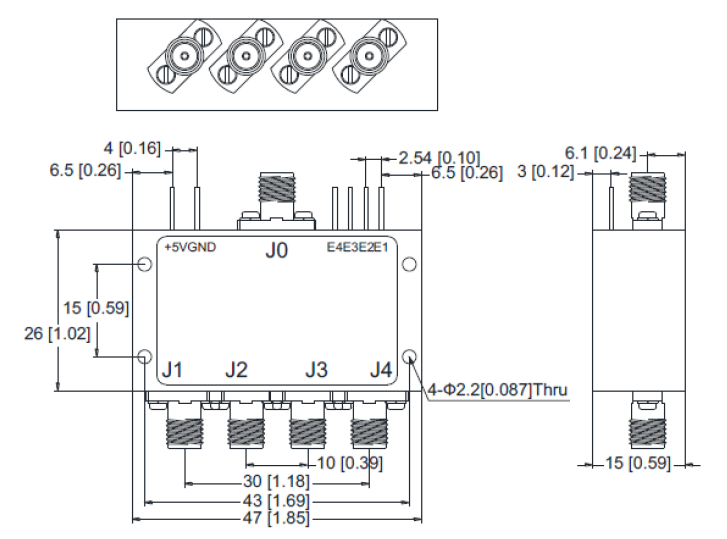

Quantic PMI Model P4T-10G10D5G-40-R-SFF is a single pole, four throw, reflective switch operating over the frequency range of 10 to 10.5 GHz with a minimum isolation of 40 dB and a maximum insertion loss of 2 dB. This model Housing measures 1.85" x 1.02" x 0.59" and is equipped with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 10 to 10.5 |
| Frequency Min (GHz): | 10 |
| Frequency Max (GHz): | 10.5 |
| Insertion Loss (dB): | 2 dB Max |
| Isolation (dB): | 40 dB Min |
| Switching Speed: | 260 ns Typ |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 25 W CW Max, 20 W CW Typ |
| Power Supply: | +5 VDC @ 500 mA Typ |
| Spurious: | 80 dBc Typ |
| Control: | TTL Logic "0" (BIT OFF) = -0.3 to +0.8 V Logic "1" (BIT ON) = +2 to +5 V |
| 0.1 dB Compression: | 38 dBm Typ |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.85" x 1.02" x 0.59" |
| Finish: | Nickel Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B, Condition B |
| Shock: | MIL-STD-202, Method 213B, Condition B |
| Vibration: | MIL-STD-202, Method 204D, Condition B |
| Altitude: | MIL-STD-202, Method 105C, Condition B |
| Temperature Cycle: | MIL-STD-202, Method 107D, Condition A |
