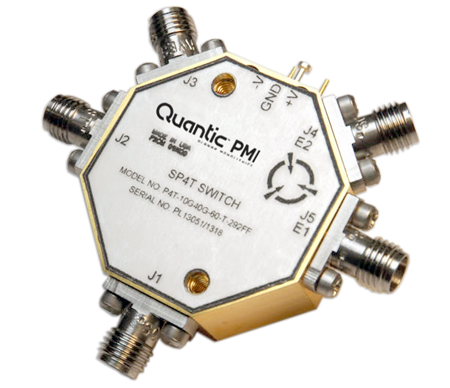

P4T-10G40G-60-T-292FF Active
SP4T Solid-State, Absorptive Switch
Additional Documents
Quantic PMI Model P4T-10G40G-60-T-292FF is a SP4T Solid-State, Absorptive Switch that operates from 10 to 40 GHz. This model offers over 60dB of isolation and less than 6dB insertion loss. The rise time is less than 15 ns and the fall time is less than 5nsec typically. This model is designed to operate with input power levels up to 23 dBm CW. The DC Supply is +5 V, 75 mA and -5 V, 45 mA typically. The housing measures 1.25” x 1.25” x 0.5” and is supplied with 2.92mm Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 10 to 40 |
| Frequency Min (GHz): | 10 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 6 dB Max |
| Insertion Loss - Typ (dB): | 6 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 100 ns Max (10% to 90%) |
| Switching Speed - Typ: | 100 ns |
| Insertion Loss Flatness: | ±1.5 dB Typ over full band - Measured 1.47 dB |
| VSWR In/Out: | 2.0:1 Max - Measured 1.98:1 IN, 1.96:1 OUT |
| Input Power: | >200 mW CW Max (23 dBm CW) |
| Power Supply: | +5 VDC @ 100 mA Typ - Measured 75 mA -5 VDC @ 100 mA Typ - Measured 43 mA |
| Control Signal: | 2-BIt Decoded TTL Logic |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.25" x 1.25" x 0.5" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
