P4T-10G40G-60-T-292FF-OPT30G40G Preliminary
SP4T Absorptive Switch

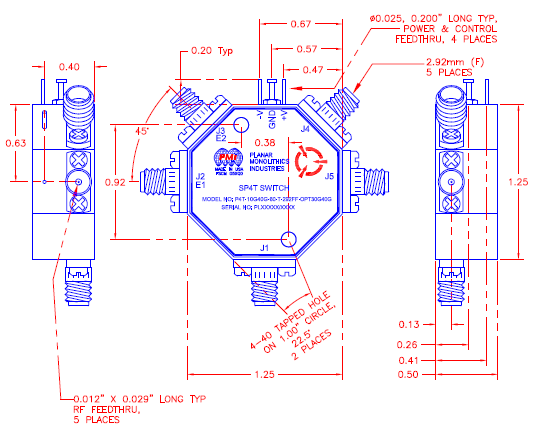

Quantic PMI Model P4T-10G40G-60-T-292FF-OPT30G40G is a SP4T Solid-State, Absorptive Switch that operates from 30.0 to 40 GHz with over 60 dB of isolation and <6 dB insertion loss that is designed to operate with input power levels up to 23 dBm CW. The DC Supply is +5 VDC, 100 mA and -5 VDC, 100 mA maximum. The housing measures 1.25” x 1.25” x 0.5” and is supplied with 2.92mm Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 30.0 to 40 |
| Frequency Min (GHz): | 30 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 6 dB Max |
| Insertion Loss - Typ (dB): | 6 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 100 ns Max (10% To 90%) |
| Switching Speed - Typ: | 100 ns |
| Insertion Loss Flatness: | ±1.5 dB over full band |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | >200 mW CW Max (23 dBm CW) |
| Power Supply: | +5 VDC @ 100 mA Typ, -5 VDC @ 100 mA Typ |
| Control Signal: | 2-BIt Decoded TTL Logic |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.25" x 1.25" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
