P4T-10G40G-60-T-GPO

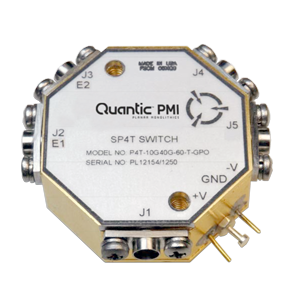

PMI Model No. P4T-10G40G-60-T-GPO is a single pole, four throw, absorptive, solid-state switch that operated over the frequency range of 10GHz to 40GHz. This model provides over 60dB of isolation and has an insertion loss of 6dB maximum. The VSWR is better than 2.0:1 into a 50 ohm impedance. This model is designed to handle operating input power levels up to 200mW (+23dBm CW) and has a maximum switching speed of 30nsec typical. This switch is supplied with GPO connectors at all RF ports. The housing is radial and measures 1.25" x 1.25" x 0.5"

Product Specifications

General Parameters:
Status: Active
Frequency: 10.0 to 40.0 GHz
Frequency Min: 10 GHz
Frequency Max: 40 GHz
Insertion Loss (Typ): 6 dB
Isolation (Typ): 60 dB
Reflective / Absorptive: Absorptive
Switching Speed (Typ): 30 nsec
Configuration: SP4T
Isolation: 60 dB min. - Measured 60.1 dB
Insertion Loss: 6.0 dB max. - Measured 5.13 dB
Insertion Loss Flatness: ±1dB typical over full band, Central Frequency 15.0 to 35.0GHz is critical
VSWR In/Out: 2.0:1 max. - Measured 1.99:1
Input Power: 200mW CW max. (+23dBm CW)
Switching Speed: 30nsec typ.
Control Signal: 2-BIt Decoded TTL Logic
Power Supply: +5 VDC @ 75 mA typ. - Measured 73 mA -5 VDC @ 45 mA typ. - Measured 43 mA
Connectors: GPO - Limited Detent
Power & Control Connector: Solder Pins
Size: 1.25" x 1.25" x 0.5"
Finish: Gold Plated
Features: Low Insertion Loss, High isolation, Fast Switching Speed, Small Size
Environmental Ratings:
Operating Temperature: -55 to +85 ºC
Non-Operating Temperature: -65ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
