| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 12.0 to 18.0 GHz |
|---|
| Frequency Min: | 12 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Insertion Loss (Typ): | 3 dB |
|---|
| Isolation (Typ): | 70 dB |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Switching Speed (Typ): | 100 nsec |
|---|

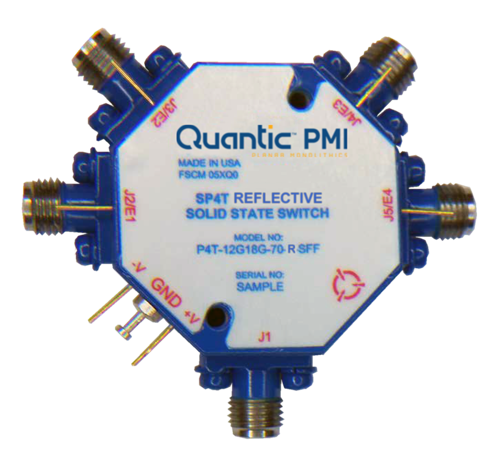

| Configuration: | SP4T |
|---|
| Isolation: | 70 dB min - Measured 77 dB |
|---|
| Insertion Loss: | 3.0 dB max - Measured 2.8 dB |
|---|
| VSWR In/Out: | 2.0:1 max - Measured 1.75:1 |
|---|
| Input Power: | +20 dBm max |
|---|
| Survival Power: | +30 dBm max |
|---|
| Switching Speed: | 100 ns max - Measured 46 ns |
|---|
| Impedance: | 50 ? |
|---|
| Control Signal: | Solder Pin, TTL Logic "0" = Low Loss, TTL Logic "1" = Isolation, E1 Controls J1 - J2, E2 Controls J1 - J3, E3 Controls J1 - J4, E4 Controls J1 - J5 |
|---|
| Power Supply: | +5VDC, 200mA typ - Measured 154 mA, -15VDC, 75mA typ - Measured 31 mA |
|---|
| Connectors: | SMA(F) |
|---|
| Size: | 1.25" x 1.25" x 0.4" |
|---|
| Finish: | Painted Blue |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 to +85 ºC |
|---|
| Non-Operating Temperature: | -65ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
