P4T-150M1G-50-T-SFF-5W Preliminary
SP4T Absorptive Switch

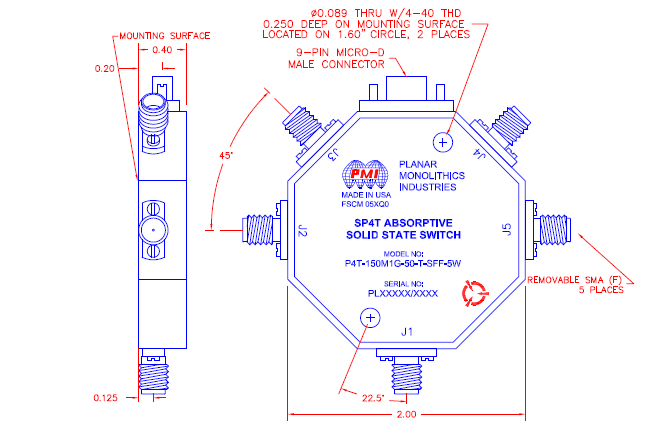

Quantic PMI Model P4T-150M1G-50-T-SFF-5W is a 0.15 to 1 GHz absorptive, high speed, single pole four throw switch capable of switching within 1 µs maximum and has 50 dB of isolation. Housing measures 1.25" x 1.25" x 0.4" and is outfitted with a 9 pin micro-D connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.15 to 1 |
| Frequency Min (GHz): | 0.15 |
| Frequency Max (GHz): | 1 |
| Insertion Loss (dB): | 8 dB Max, 0.75 dB Typ |
| Insertion Loss - Typ (dB): | 1 dB |
| Isolation (dB): | 50 dB Min |
| Isolation - Typ (dB): | 50 dB |
| Switching Speed: | 1 µs Max |
| Switching Speed - Typ: | 2 µs |
| VSWR In/Out: | 1.25:1 Typ |
| Input Power: | 5 W Max |
| Power Supply: | +5 VDC, 200 mA Typ, -15 VDC, 100 mA Typ |
| Control Signal: | TTL Logic "0" = Low Loss TTL Logic "1" = Isolation E1 Controls J1 to J2 E2 Controls J1 to J3 E3 Controls J1 to J4 E4 Controls J1 to J5 |
| Power & Control Connector: | 9-Pin Micro-D Connector |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
