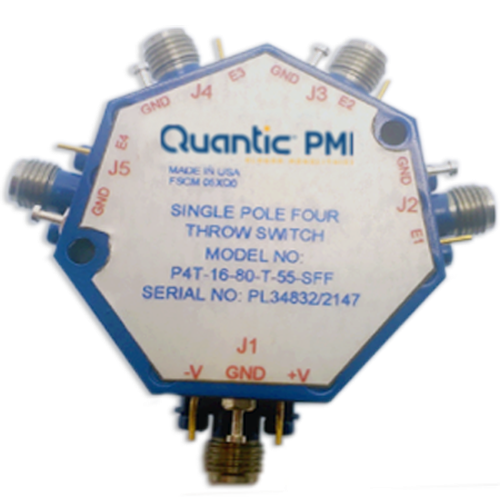

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 1 .0 to 6 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Insertion Loss (dB): | 1.5 dB Goal, 0.1 dB Max |
|---|
| Isolation (dB): | 80 dB Min |
|---|
| Switching Speed: | 200 ns Max |
|---|
| VSWR In/Out: | 1.8:1 Max |
|---|
| Input Power: | 40 dBm (10 W) Max (Peak),
30 dBm (1 W) Max (Average - CW) |
|---|
| Impedance: | 50 Ohm |
|---|
| Power Supply: | +5 VDC ± 5%, 200 mA Typ,
-5 VDC ± 5%, 100 mA Typ |
|---|
| Control: | TTL Logic "0" = Low Loss
TTL Logic "1" = Isolation
E1 Controls J1 to J2
E2 Controls J1 to J3
E3 Controls J1 to J4
E4 Controls J1 to J5 |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|
| Finish: | Blue epoxy polimide coating IAW MIL-C-22750, Type I over epoxy polimide primer IAW MIL-P-23377, Type I, Class 1 or 3 |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | 98% (65 °C) RH OR LESS - MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 2040 COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 1 OSC COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 1070 COND. A |
|---|
