P4T-17G40G-60-R-55-292FF Active
SP4T Reflective Switch
Additional Documents

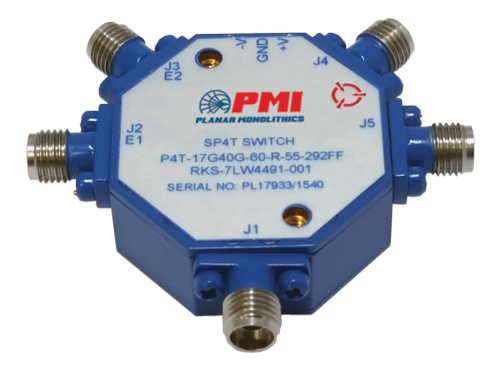

PMI Model P4T-17G40G-60-R-55-292FF is a single pole, four throw, reflective switch operates over the 17 to 40 GHz frequency range that features low insertion loss and high isolation and incorporates a TTL compatible driver for ease of system integration. Housing measures 1.25" x 1.25" x 0.5" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 17 to 40 |
| Frequency Min (GHz): | 17 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 4.5 dB Max |
| Insertion Loss - Typ (dB): | 4.5 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 100 ns Max (50% TTL to 90% RF), 100 ns Max (10% RF to 90% RF) |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.0:1 Max - Measured 1.95:1 |
| Input Power: | 100 mW CW (20 dBm CW), Hot Switching |
| Power Supply: | +5 VDC @ 100 mA Max - Measured 35 mA, -5 VDC @ 100 mA Max - Measured 25 mA |
| Control Signal: | TTL Control |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.25" x 1.25" x 0.50" |
| Weight: | 2 oz Max |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 to +95 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107G Cond. A |
