P4T-17G40G-60-T-55-292FF Active
SP4T Absorptive Switch

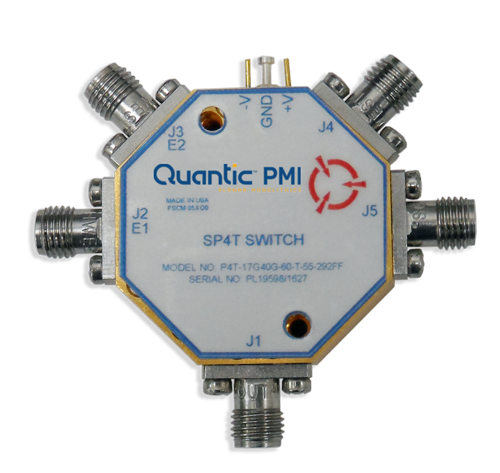

Quantic PMI Model P4T-17G40G-60-T-55-292FF is a 17 to 40 GHz, single pole, four throw, absorptive switch that offers over 60 dB of isolation and <6 dB insertion loss. The housing measures 1.25” x 1.25” x 0.5” and is supplied with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 17 to 40 |
| Frequency Min (GHz): | 17 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 6 dB Max |
| Insertion Loss - Typ (dB): | 6 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 100 ns Max (10% To 90%) |
| Switching Speed - Typ: | 100 ns |
| Insertion Loss Flatness: | ±1.5 dB Over Full Band - Measured ±8 dB |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 200 mW CW (23 dBm CW) Min |
| Power Supply: | +5 VDC @ 100 mA Max - Measured 43 mA, -5 VDC @ 100 mA Max - Measured 44 mA |
| Control Signal: | TTL Control |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.25" x 1.25" x 0.50" |
| Weight: | 1.5 oz Typ, 1.75 oz. Max |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
