P4T-18G40G-110-T-512-292FF-IND Preliminary
SP4T Absorptive Switch
Quantic PMI Model P4T-18G40G-110-T-512-292FF-IND is an absorptive, single pole, four throw pin diode switch that operates over the 18 to 40 GHz frequency range which incorporates a TTL compatible driver for easy system integration. Housing measures 2.0" x 1.0" x 0.4" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 18 to 40 |
| Frequency Min (GHz): | 18 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 5.25 dB Typ, 6 dB Max (0.1 to 18 GHz), 6.25 dB Typ, 8 dB Max (0.1 to 0.3 & 18 to 26.5 GHz), 7.25 dB Typ, 10 dB Max (26.5 to 40 GHz) |
| Insertion Loss - Typ (dB): | 5.25 dB |
| Isolation (dB): | 90 dB Typ, 80 dB Min (0.1 to 0.3 GHz) 110 dB Typ, 100 dB Min (0.3 to 18 GHz), 100 dB Typ, 90 dB Min (18 to 26.5 GHz), 90 dB Typ, 80 dB Min (26.5 to 40 GHz) |
| Isolation - Typ (dB): | 110 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.0:1 Typ, 2.75:1 Max |
| Input Power: | 20 dBm CW Max |
| Power Supply: | +5 VDC @ 200 mA Max, -12 VDC @ 100 mA Max |
| Control Signal: | 4 Line TTL "0" = Insertion Loss, "1" = Isolation |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |

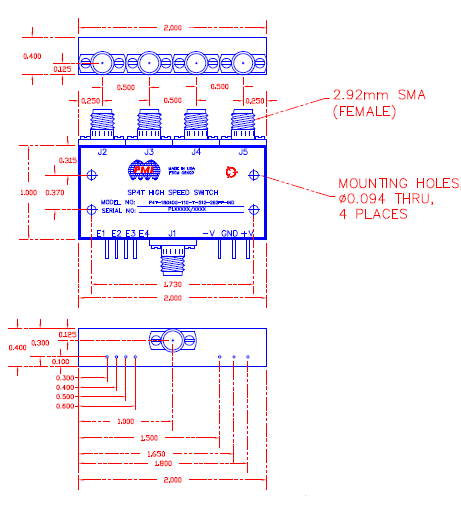

| Size: | 2.0" x 1.0" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C Method 508.2 |
