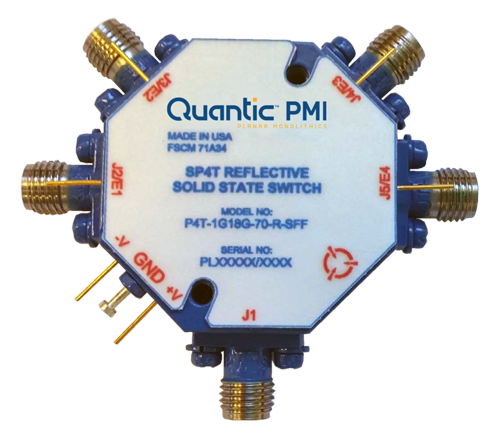

P4T-1G18G-70-R-SFF *

Buy Now

PMI Model No. P4T-1G18G-70-R-SFF is a Reflective, High Speed, Single Pole Four Throw Switch capable of switching within 100ns maximum. The frequency range is 1.0 to 18.0 GHz. This switch has 70dB isolation.

Product Specifications

General Parameters:
Status: Active
Frequency: 1.0 to 18.0 GHz
Frequency Min: 1 GHz
Frequency Max: 18 GHz
Insertion Loss (Typ): 3 dB
Isolation (Typ): 70 dB
Reflective / Absorptive: Reflective
Switching Speed (Typ): 100 nsec
Configuration: SP4T
Isolation: 70 dB min - Measured 78.3 dB
Insertion Loss: 3.0 dB max - Measured 2.86 dB
VSWR In/Out: 2.0:1 max - Measured 1.71:1
Input Power: +20dBm max
Survival Power: +30dBm max
Switching Speed: 100 ns max - Measured 49.6 ns
Impedance: 50 ?
Control Signal: TTL Logic, "0" = On & "1" = Off
Power Supply: +5 VDC, 200 mA typ - Measured 225 mA, -15 VDC, 75 mA typ - Measured 31 mA
Connectors: SMA(F)
Size: 1.25" x 1.25" x 0.4"
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -55 to +85 ºC
Non-Operating Temperature: -65ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
