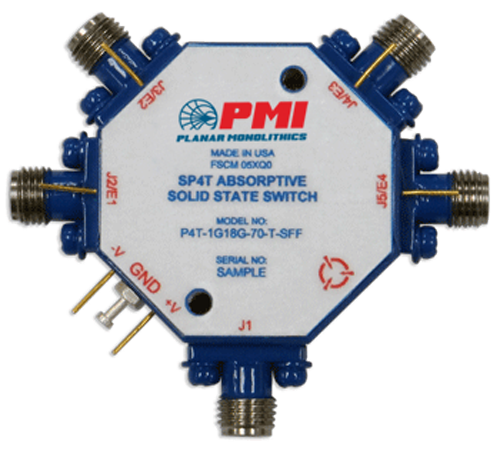

P4T-1G18G-70-T-SFF *

Absorptive, High Speed, SP4T Switch

Buy Now

PMI Model No. P4T-1G18G-70-T-SFF is an Absorptive, High Speed, Single Pole Four Throw Switch capable of switching within 100 ns maximum. The frequency range is 1.0 to 18.0 GHz. This switch has 70 dB isolation.

Product Specifications

General Parameters:
Status: Active
Frequency: 1.0 to 18.0 GHz
Frequency Min: 1 GHz
Frequency Max: 18 GHz
Insertion Loss (Typ): 3.75 dB
Isolation (Typ): 70 dB
Reflective / Absorptive: Absorptive
Switching Speed (Typ): 100 ns
Configuration: SP4T
Isolation: 70 dB Min - Measured 71 dB
Insertion Loss: 3.75 dB Max - Measured 3.46 dB
VSWR In/Out: 2.0:1 Max - Measured 1.7:1
Input Power: +20 dBm Max
Survival Power: +30 dBm Max
Switching Speed: 100 ns Max - Measured 52 ns
Impedance: 50 Ohm
Control Signal: TTL Logic, "0" = On & "1" = Off
Power Supply: +5 VDC, 200 mA Typ - Measured 112 mA,
-15 VDC, 100 mA Typ - Measured 54 mA
Connectors: SMA(F)
Size: 1.25" x 1.25" x 0.4"
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
