P4T-1G1R1R-45-T-SFF-4KW Preliminary
SP4T Absorptive Switch

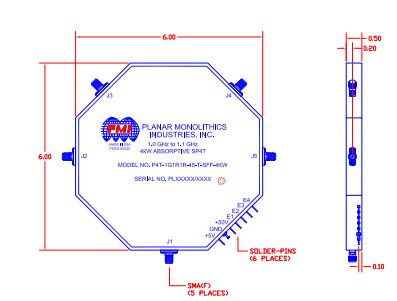

Quantic PMI Model P4T-1G1R1R-45-T-SFF-4KW is a Solid-State, Absorptive SP4T Switch that is designed for use in IFF applications that operates from 1 to 1.1 GHz and handles peak input power levels up to 4 kW peak having a maximum pulse width of 32 us and a duty cycle of 1%. Housing measures 6" dia radial x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 1 to 1.1 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 1.1 |
| Insertion Loss (dB): | 8 dB Max |
| Insertion Loss - Typ (dB): | 1 dB |
| Isolation (dB): | 45 dB Min |
| Isolation - Typ (dB): | 45 dB |
| Switching Speed: | 30 µs Max (50% TTL to 10% & 90% RF) |
| Switching Speed - Typ: | 30 ns |
| Input Power: | 4 kW peak |
| Duty Cycle: | 1% Max |
| Pulse Width: | 0.8 to 32 µs |
| Power Supply: | +50 VDC @ 50 mA Nom, +5 VDC @ 400 mA Nom |
| Control Signal: | TTL Logic - Individual Control, "0" = Isolation, "1" = Insertion Loss |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 6" Diameter Radial x 0.50" Thick |
| Sealing: | Hermetic Sealed RF / Epoxy Sealed Driver |
| Finish: | Painted Blue (Mounting Surface Free of Paint) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 ºC to +85 ºC |
| Non-Operating Temperature: | -54 ºC to +125 ºC |
| EMI / EMC: | MIL-STD-461 |
