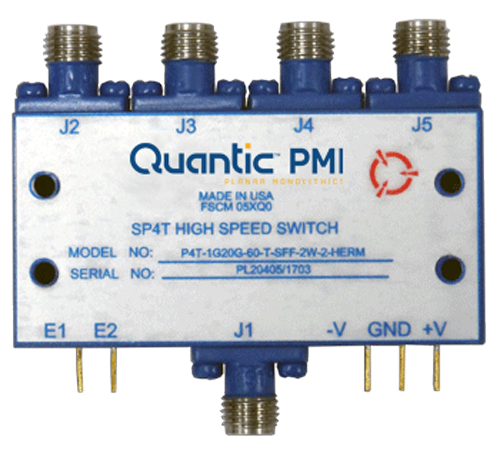

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 1.0 to 20.0 GHz |
|---|
| Frequency Min: | 1 GHz |
|---|
| Frequency Max: | 20 GHz |
|---|
| Insertion Loss (Typ): | 6.5 dB |
|---|
| Isolation (Typ): | 50 dB |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Switching Speed (Typ): | 500 nsec |
|---|
| Configuration: | SP4T |
|---|
| Isolation: | 60 dB Min (1.0 to 18.0 GHz) - Measured 68 dB, 50 dB Typ (18.0GHz to 20.0 GHz) - Measured 58 dB |
|---|
| Insertion Loss: | 4.5 dB Typ (1.0 to 18.0 GHz) - Measured 4.3 dBm, 6.5 dB Typ (18.0 to 20.0 GHz) - Measured 4.5 dB |
|---|
| VSWR In/Out: | Absorptive In/Out: 2.0:1 Typ - Measured 2.0:1, Absorptive Out/Off: 2.0:1 Typ - Measured 1.9:1 |
|---|
| Input Power: | +33dB CW |
|---|
| Switching Speed: | 500 ns typ. |
|---|
| Delay On/Off: | 500 ns Typ - Measured 333 ns, 500 ns Typ - Measured 41 ns |
|---|
| Control Signal: | TTL Logic |
|---|
| Power Supply: | +5V @ 150 mA Max - Measured 86 mA, -12V @ 100 mA Max - Measured 61 mA |
|---|
| Size: | 2.0" x 1.0" x 0.4" |
|---|
| Sealing: | Hermetic |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 to +85 ºC |
|---|
| Non-Operating Temperature: | -65ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
