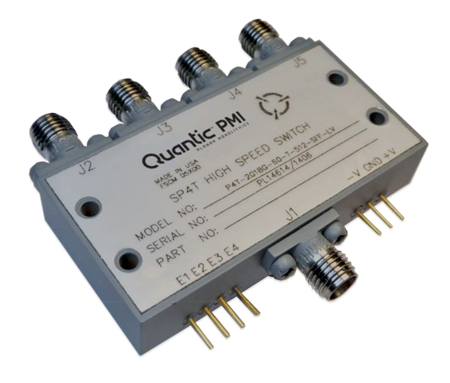

Quantic PMI Model P4T-2G18G-60-T-512-SFF-LV-SP is a 2 to 18 GHz, single pole, four throw, absorptive, low video transient switch. This model offers 60 dB port-to-port isolation; a maximum insertion loss of 3.2 dB; a switching speed of 50 ns maximum; and is independently TTL controlled with an operating power of 23 dBm CW and a VSWR of 2.0:1. Model supplied with Passive Stainless Steel, SMA female connectors in a hermetically sealed housing that measures 2.0" x 1.0" x 0.4".
