P4T-2G18G-60-T-512-SMPF-LV-HERM Preliminary
SP4T Absorptive Switch

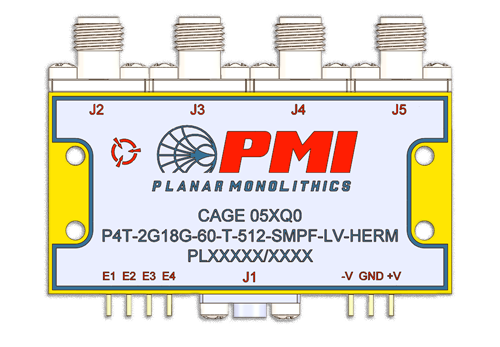

PMI Model P4T-2G18G-60-T-512-SMPF-LV-HERM is a 2 to 18 GHz, single pole, four throw, absorptive, switch. This model offers 60 dB isolation, 3.2 dB insertion loss, and 50 ns switching speed. This model is supplied with SMP (J1) and SMA female (J2-J5) connectors in a hermetically sealed housing that measures 2.0" x 1.0" x 0.4".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.2 Max |
| Isolation (dB): | 60 Min |
| Switching Speed: | 50 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 23 dBm CW Max |
| Survival Power: | 27 dBm CW Max |
| Video leakage: | 50 mV Peak-Peak Max |
| Power Supply: | +5 VDC @ 120 mA Typ -12 VDC @ 75 mA Typ |
| Control Signal: | 4 Line Independent: Logic "0" = Insertion Loss / (1.6 mA Max Sink @ 0.4 V) Logic "1" = Isolation / (40 µA Max Source @ 2.4 V) |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female (J2-J5) SMP (J1) |
| Size: | 2.0" x 1.0" x 0.4" |
| Sealing: | Hermetic |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. C |
| Vibration: | MIL-STD-202, Method 204 Cond. G |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
