P4T-2G18G-70-T-SFF Active

SP4T Absorptive Switch

P4T-2G18G-70-T-SFF
PL30127 - Unit Data

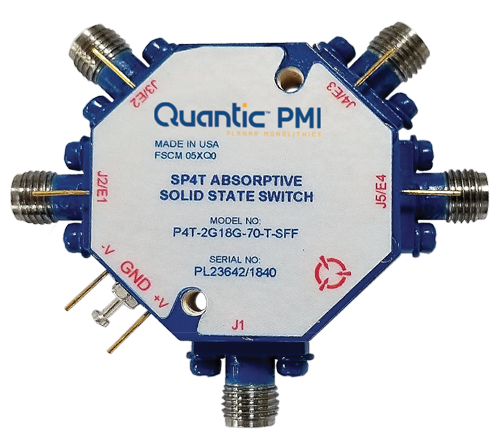

Quantic PMI Model P4T-2G18G-70-T-SFF is an Absorptive, High Speed, Single Pole Four Throw Switch capable of switching within 100 ns maximum with a frequency range of 2 to 18 GHz and has 70 dB isolation. Housing measures 1.25" x 1.25" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP4T
Reflective / Absorptive: Absorptive
Frequency (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Insertion Loss (dB): 3.5 dB Max
Insertion Loss - Typ (dB): 3.5 dB
Isolation (dB): 70 dB Min
Isolation - Typ (dB): 70 dB
Switching Speed: 100 ns Max
Switching Speed - Typ: 100 ns
VSWR In/Out: 2.0:1 Max
Input Power: 30 dBm Max
Survival Power: 20 dBm Max
Impedance: 50 Ohm
Control Signal: TTL Logic
Power & Control Connector: Solder Pins
Connectors: SMA Female
Size: 1.25" x 1.25" x 0.4"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
