P4T-2G18G-70-T-SFF-NSI Preliminary
SP4T Absorptive Switch

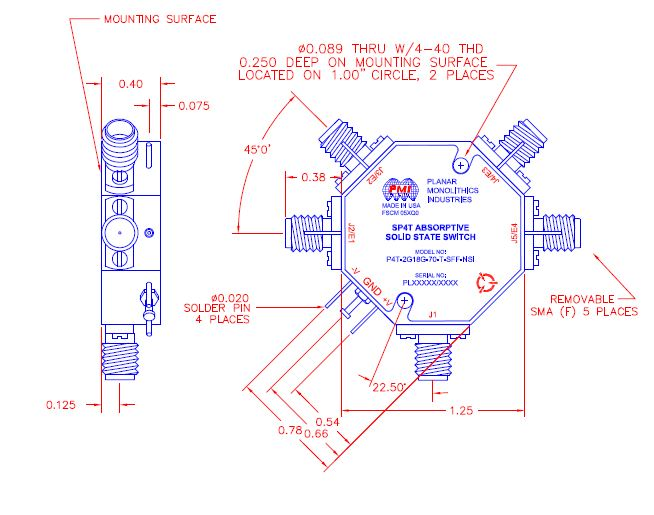

Quantic PMI Model P4T-2G18G-70-T-SFF-NSI is an absorptive, high speed, single pole, four throw switch capable of switching within 100 ns maximum with a frequency range of 2 to 18 GHz and has >70 dB isolation. Housing measures 1.25" x 1.25" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.5 dB Max (2 to 6 GHz), 3 dB Max (6 to 12 GHz), 4 dB Max (12 to 18 GHz) |
| Isolation (dB): | 70 dB Min |
| Switching Speed: | 100 ns Max |
| VSWR In/Out: | 1.8:1 Max (2 to 6 GHz) 1.5:1 Max (6 to 12 GHz) 2.0:1 Max (12 to 18 GHz) |
| Impedance: | 50 Ohm |
| Power Supply: | +5 VDC @ 200 mA Typ, -15 VDC @ 100 mA Typ |
| Control: | Solder Pin TTL Logic "0" = Low Loss TTL Logic "1" = Isolation E1 Controls J1-J2 E2 Controls J1-J3 E3 Controls J1-J4 E4 Controls J1-J5 |
| Insertion Loss Flatness/1 GHz: | ±0.5 dB |
| RF Input Power: | 30 dBm Max |
| 0.1 dB Compression: | 30 dBm Min |
| IP3: | 55 dBm Min |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.40" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 °C to 60 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
