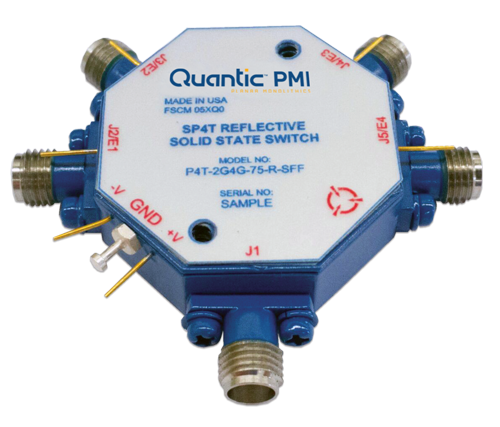

P4T-2G4G-75-R-SFF *

Buy Now

PMI Model No. P4T-2G4G-75-R-SFF is a Reflective, High Speed, Single Pole Four Throw Switch capable of switching within 100ns maximum. The frequency range is 2.0 to 4.0GHz. This switch has 75dB isolation.

Product Specifications

General Parameters:
Status: Active
Frequency: 2.0 to 4.0 GHz
Frequency Min: 2 GHz
Frequency Max: 4 GHz
Insertion Loss (Typ): 1.1 dB
Isolation (Typ): 75 dB
Reflective / Absorptive: Reflective
Switching Speed (Typ): 100 nsec
Configuration: SP4T
Isolation: 75 dB min - Measured 91.4 dB
Insertion Loss: 1.1 dB typ - Measured 1.09 dB
VSWR In/Out: 1.6:1 typ - Measured 1.26:1
Input Power: +20dBm max
Survival Power: +30dBm max
Switching Speed: 100 ns max - Measured 38 ns
Impedance: 50 ?
Control Signal: Solder Pin, TTL Logic "0" = Low Loss, TTL Logic "1" = Isolation, E1 Controls J1 - J2, E2 Controls J1 - J3, E3 Controls J1 - J4, E4 Controls J1 - J5
Power Supply: +5 VDC, 200 mA typ - Measured 230 mA, -15 VDC, 75 mA typ - Measured 30 mA
Connectors: SMA(F)
Size: 1.25" x 1.25" x 0.4"
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -55 to +85 ºC
Non-Operating Temperature: -65ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
