P4T-2G6G-60-R-SFF-SL-IND Preliminary
SP4T Reflective Switch

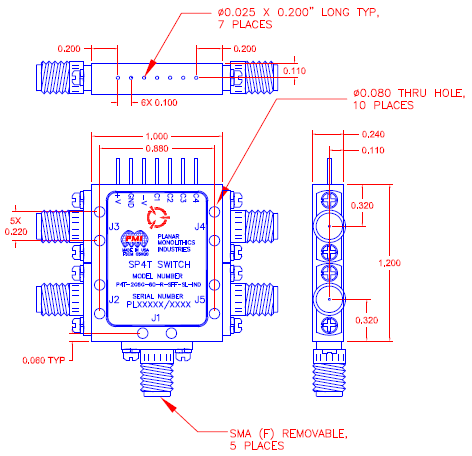

Quantic PMI Model P4T-2G6G-60-R-SFF-SL-IND is a Reflective, High Speed, Single Pole Four Throw Switch capable of switching within 25 ns with a frequency range of 2 to 6 GHz and has 60 dB minimum isolation. Supplied in a slimline housing measuring 1.0" x 1.2" x 0.24". with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 2 to 6 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 1.8 dB Typ |
| Insertion Loss - Typ (dB): | 1.8 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 25 ns Max |
| Switching Speed - Typ: | 25 ns |
| VSWR In/Out: | 1.5:1 Typ |
| Input Power: | 27 dBm Max |
| Impedance: | 50 Ohm |
| Power Supply: | +5 VDC @ 150 mA Typ, -15 VDC @ 50 mA Typ |
| Control Signal: | TTL Logic "0" = Low Loss TTL Logic "1" = Isolation E1 Controls J1 to J2 E2 Controls J1 to J3 E3 Controls J1 to J4 E4 Controls J1 to J5 |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.00" x 1.20" x 0.24" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
