P4T-30M6-70-T-SFF Preliminary
SP4T Absorptive Switch
Quantic PMI Model P4T-30M6-70-T-SFF is a single pole, four throw, absorptive switch that operates over the frequency range of 0.03 to 6 GHz with a minimum isolation of 70 dB and a minimum return loss of -12 dB. Housing size is 2.008" x 0.984" x 0.394" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.03 to 6 |
| Frequency Min (GHz): | 0.03 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 2.8 dB Max |
| Isolation (dB): | 70 dB Min |
| Switching Speed: | 80 ns Max (Rise/Fall), 200 ns Max (On/Off) |
| Rise/Fall Time (10% to 90% RF, 90% to 10% RF): | 80 ns Max |
| On/Off Time (50% TTL to 90% RF, 50% TTL to 10% RF): | 200 ns Max |
| Impedance: | 50 Ohm |
| Power Supply: | +5 ± 0.25 VDC @ 120 mA Max, -15 ± 0.25 VDC @ 50 mA Max |
| Return Loss (All Ports On or Off State): | -12 dB Min |
| Operating Power: | 27 dBm Com Port 23 dBm Other Ports @ Frequency Over 0.5 GHz 20 dBm @ Frequency Under 0.5 GHz Peak 8 Watts Max @ 1 us (Note: When input +27 dBm, the output of on port can not be full reflected) |
| EMC: | -80 dB Min |
| Control Logic: | 2 BCD, 0 V < "0" < 0.8 V, 2.4 V < "1" < 5 V |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |

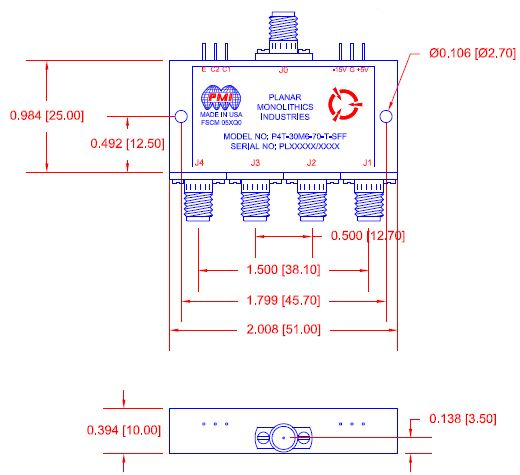

| Size: | 2.008" x 0.984" x 0.394" |
| Finish: | Alodine and Laser Sealing |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
