P4T-34G36G-60-T-5-292FF Preliminary
SP4T Absorptive Switch

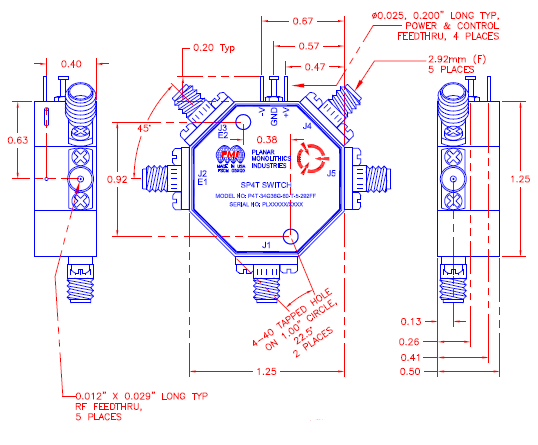

Quantic PMI Model P4T-34G36G-60-T-5-292FF is a SP4T Solid-State, Absorptive Switch that operates from 34 to 36 GHz. This model offers over 60 dB of isolation and less than 6 dB insertion loss. The housing measures 1.25” x 1.25” x 0.5” and is supplied with 2.92mm Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 34 to 36 |
| Frequency Min (GHz): | 34 |
| Frequency Max (GHz): | 36 |
| Insertion Loss (dB): | 6 dB Max |
| Insertion Loss - Typ (dB): | 6 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 100 ns Max (10% To 90%) |
| Switching Speed - Typ: | <100 ns |
| VSWR In/Out: | 2.0:1 Max |
| Control Signal: | 2-BIt Decoded TTL Logic |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.25" x 1.25" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
