P4T-4060-80-T-RD Preliminary
Absorptive, SP4T Pin Diode Switch

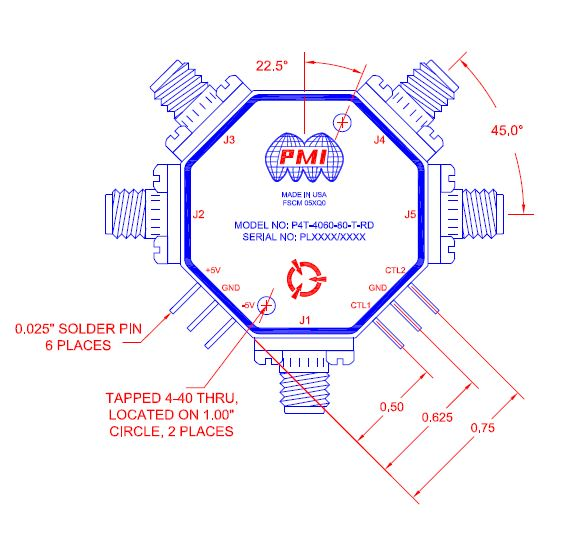

Quantic PMI Model P4T-4060-80-T-RD is an absorptive, single pole four throw pin diode switch that operates over the 40 to 60 GHz frequency range that features low insertion loss and high isolation and incorporates a TTL compatible driver for ease of system integration. Housing measures 1.25" x 1.25" x 0.4" with 1.85mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 40 to 60 |
| Frequency Min (GHz): | 40 |
| Frequency Max (GHz): | 60 |
| Insertion Loss (dB): | 11 dB Typ |
| Isolation (dB): | 80 dB Typ |
| Switching Speed: | 50 ns Max |
| VSWR In/Out: | 2.5:1 Typ |
| Input Power: | 20 dBm CW Max |
| Power Supply: | +5 VDC @ 200 mA Max, -5 VDC @ 200 mA Max |
| Control Signal: | TTL Logic |
| Power & Control Connector: | Solder Pins |
| Connectors: | 1.85mm Female |
| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
