P4T-4D4G5G-25-R-512-SFF-IND-20W Preliminary
SP4T Reflective Switch

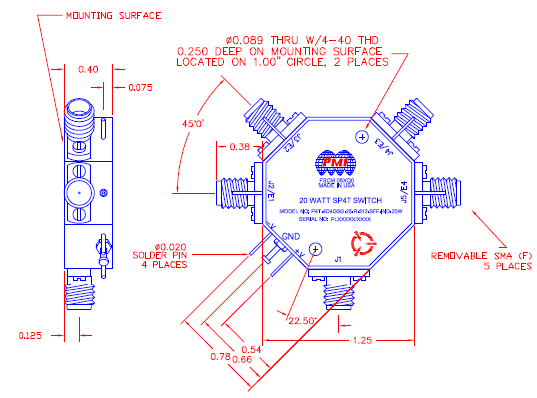

Quantic PMI Model P4T-4D4G5G-25-R-512-SFF-IND-20W is a Reflective, Single Pole, Four Throw Pin Diode Switch that operates over the 4.4 to 5 GHz frequency range and designed to handle up to 20 watts CW input power. Housing measures 1.25" x 1.25" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 4.4 to 5 |
| Frequency Min (GHz): | 4.4 |
| Frequency Max (GHz): | 5 |
| Insertion Loss (dB): | 0.5 dB Typ, 0.75 dB Max |
| Insertion Loss - Typ (dB): | 0.5 dB |
| Isolation (dB): | 25 dB Min |
| Isolation - Typ (dB): | 25 dB |
| Switching Speed: | 2 µs Max |
| Switching Speed - Typ: | 2 µs |
| VSWR In/Out: | 1.4:1 goal, 1.5:1 Max |
| Input Power: | 20 W CW Max |
| Power Supply: | +5 VDC @ 150 mA Max, -12 VDC @ 25 mA Max |
| Control Signal: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -20 ºC to +80 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
