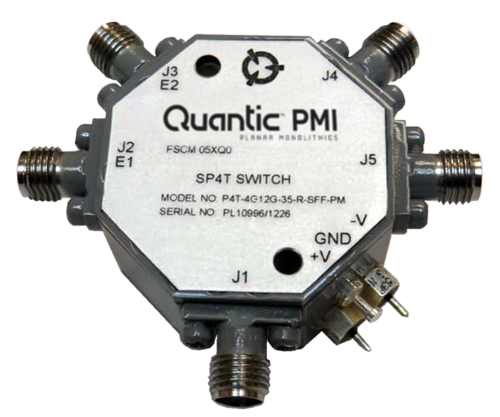

P4T-4G12G-35-R-SFF-PM Active

SP4T Reflective Switch

P4T-4G12G-35-R-SFF-PM
Product Feature

Quantic PMI Model P4T-4G12G-35-R-SFF-PM is a single pole, four throw, reflective switch that operates over the 4 to 12 GHz frequency with of features low insertion loss of 1 dB and isolation of 70 dB. All ports are phase matched to be within ±7.5°. The switching speed is <30 ns and the DC power required is ±12 VDC having a positive current draw of 62 mA and a negative current draw of 22 mA. Supplied in a compact housing that measures only 1.25" x 1.25" x 0.7" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP4T
Reflective / Absorptive: Reflective
Frequency (GHz): 4 to 12
Frequency Min (GHz): 4
Frequency Max (GHz): 12
Insertion Loss (dB): 8 dB Typ, 1.5 dB Max
Insertion Loss - Typ (dB): 1.5 dB
Isolation (dB): 70 dB Typ, 35 dB Min
Isolation - Typ (dB): 70 dB
Switching Speed: 20 ns Typ, 30 ns Max
Switching Speed - Typ: 30 ns
Phase Matching: ±7.5° @ 12 GHz Max (Arm - Arm within same unit)
VSWR In/Out: 2.0:1 Typ - Measured 1.54:1
Input Power: 0 dBm CW Max
Survival Power: 10 dBm CW Max
Power Supply: +12 VDC @ 65 mA Typ,
-12 VDC @ 22 mA Typ
Control Signal: TTL - 2 BIT Decoded
Power & Control Connector: Feedthrus
Connectors: SMA Female - removable
Features: Low Insertion Loss, Phase Matched, High isolation, Fast Switching Speed, Small Size
Size: 1.25" x 1.25" x 0.70" - Radial
Finish: Painted Gray
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to +70 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
