P4T-4G12G-65-T-SFF Preliminary
SP4T Absorptive Switch
Quantic PMI Model P4T-4G12G-65-T-SFF is a single pole, four throw, absorptive switch operating over the frequency range of 4 to 12 GHz with a minimum isolation of 65 dB, maximum insertion loss of 2.7 dB, and a typical switching speed of 150 ns. Housing size is 1.5" sq x 0.4" with SMA female RF connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 4 to 12 |
| Frequency Min (GHz): | 4 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 2.7 dB Max |
| Isolation (dB): | 65 dB Min |
| Switching Speed: | 150 ns Typ, 180 ns Max |
| Rise/Fall Time: | 20 ns Typ |
| VSWR In/Out: | 1.8:1 Max |
| Power Supply: | +5 VDC @ 100 mA -12 VDC @ 110 mA |
| Control Signal: | TTL Control Logic: Non-Inverting Logic 0 (low) = Insertion Loss Logic 1 (high) = Isolation |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |

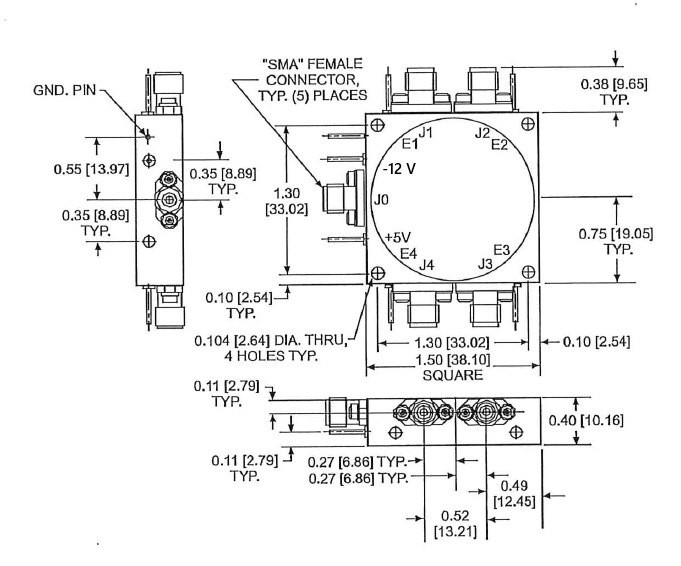

| Size: | 1.5" sq x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. B |
